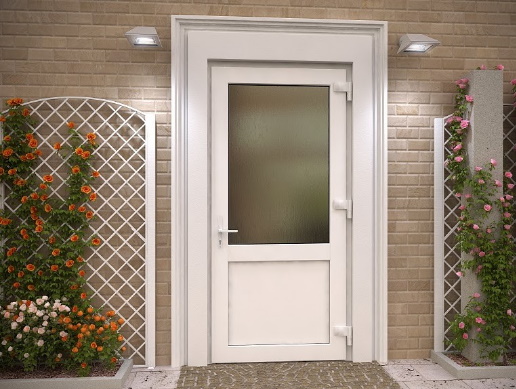

REHAU Brillant-Design Door

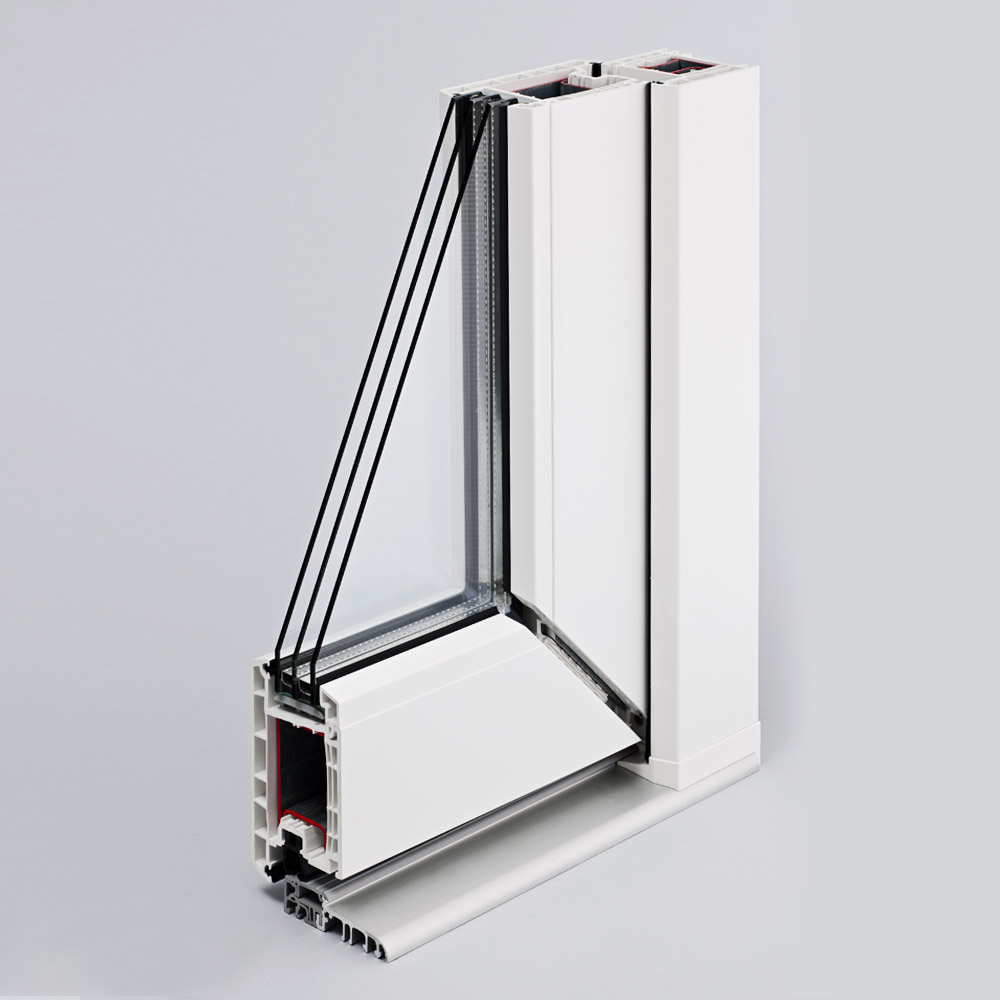

Excellent thermal insulation of doors from the REHAU Brillant-Design profile ensures coziness and comfort, even when there is snow and blizzard outside. Thanks to the box depth of 70/80 mm and two sealing contours, doors made of the REHAU Brillant-Design profile reliably protect against cold, drafts, moisture and dust.

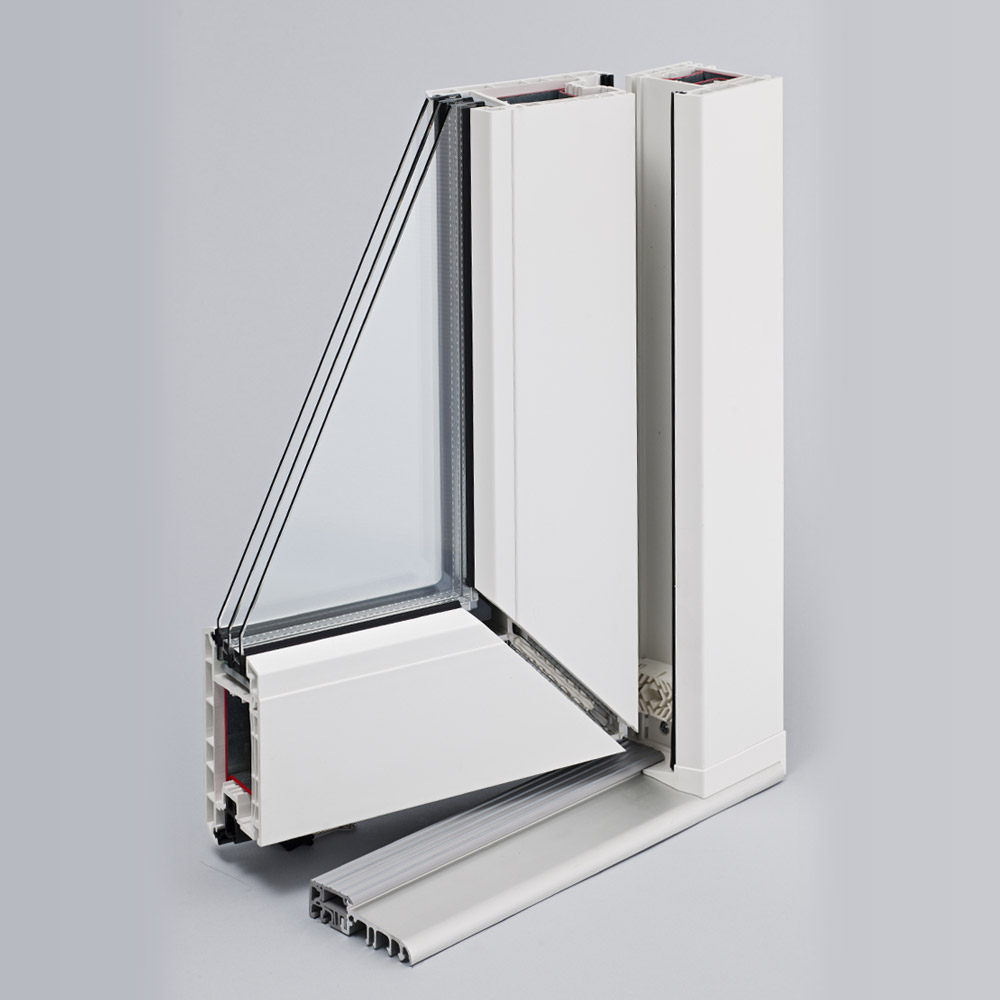

Five air chambers perform the function of an insulating barrier between the low temperature outside and the high temperature inside the room (or vice versa in summer). This profile structure provides extremely high coefficient of heat transfer resistance.

Advantages and possibilities

High thermal insulation allows you to save money on heating and air conditioning.
The width of the reinforcement chamber of 35 mm allows the use of reinforcement with high static characteristics for the manufacture of large structures. The best choice for the construction of new premium housing.
Allows you to create an exclusive design and emphasize individuality.
Recommended for reconstruction and repair of old housing. Optimally suitable for buildings with low energy consumption.
It is used for the manufacture of doors, balcony and entrance doors of any shape and complexity.

Specifications of Doors

Feature	Specification
Profile depth:	70-80 mm
Number of chambers:	5-6 chambers
Glass width:	up to 41 mm
Threshold height:	20 mm
Seals:	EPDM / 2 double seals
Thermal performance (Uf):	1,3-1,2 W/m²K
Sound insulation:	Rw, P = 41 dB
Burglary prevention:	max. class 2 (ENV 1627)
Air permeability:	class 4 (EN 12207)
Moisture permeability:	max. class 9A (ENV 12208)

The international Energy Star standard has specific energy efficiency requirements for windows. According to these requirements, the heat transfer coefficient Uf should not exceed 1.2 W/m²K.

Advantages of Doors

REINFORCED CORNERS

Strengthening the reinforcement in the leaf provides additional strength to the connecting seam, increasing the stability and rigidity.

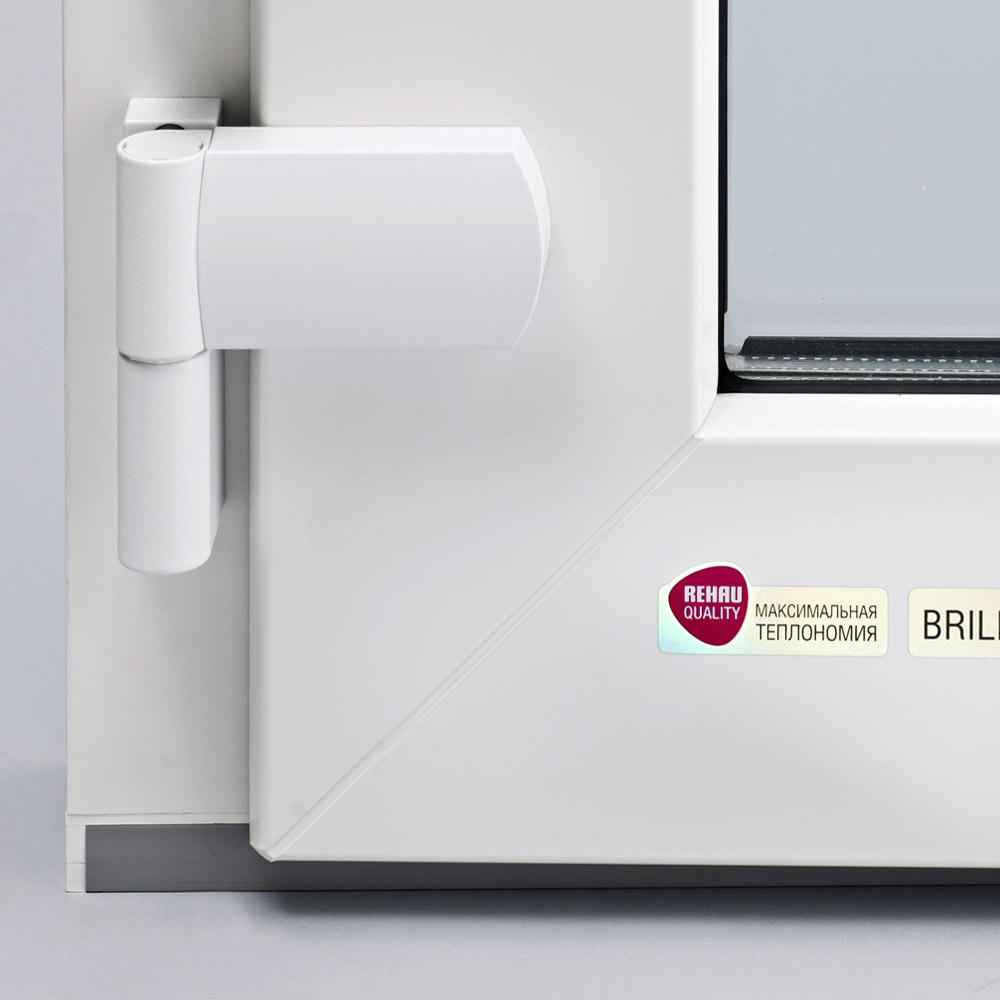

HINGES

Overhead door hinges are made from high quality materials using self-lubricating bushings, eliminating the need for maintenance.

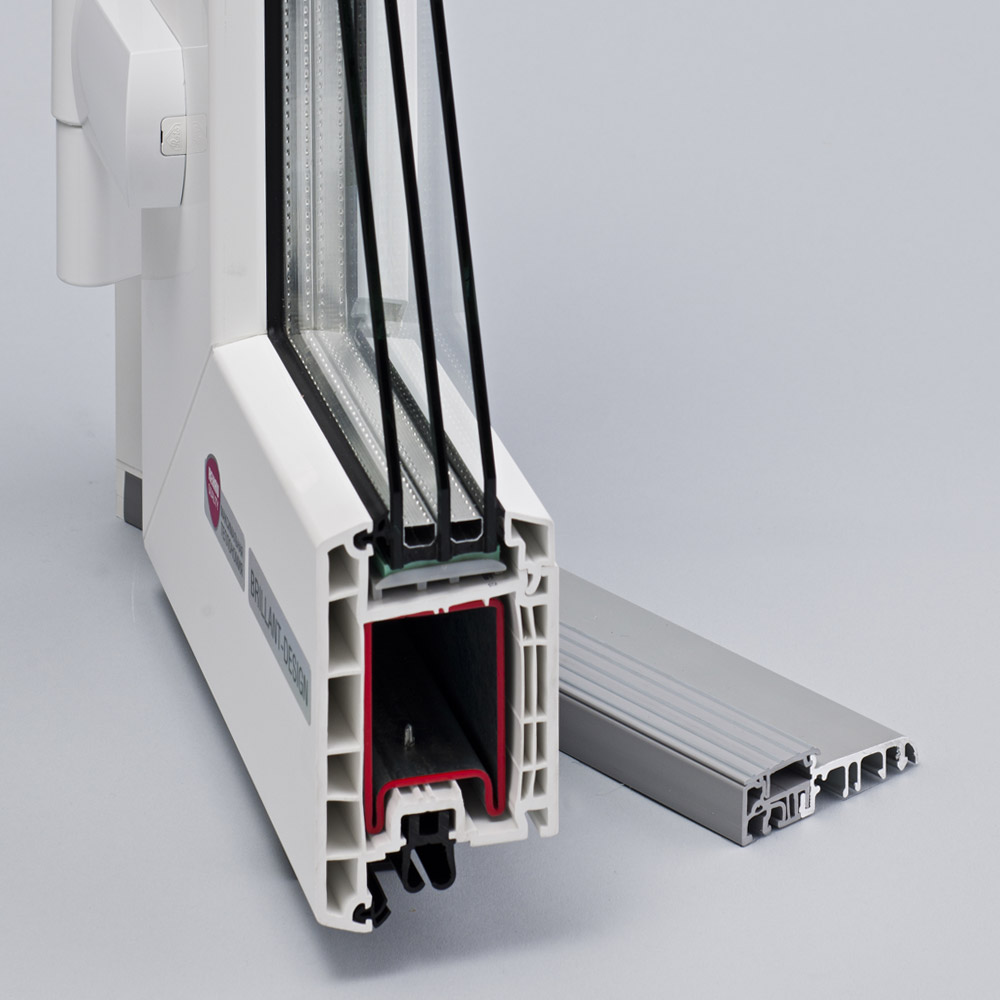

THRESHOLDS

Low height threshold made of oxidized aluminum in combination with a plastic insert. The thermal inserts minimizes the risk of condensation, mold or mildew.

TWO SEALING CIRCUITS

Double sealing in the threshold area ensures a high density of the door seal, protecting the room from drafts, dust and water.

MASSIVE REINFORCEMENT

Steel reinforcement along the entire perimeter provides excellent static properties, high rigidity and stability of the door structure.

Discover own Design
Thanks to HDF technology (High Definition Finishing), the REHAU Brillant-Design profile is characterized by a perfectly smooth glossy surface. HDF ensures low porosity of the profile, due to which dirt does not linger on such a surface, and the doors retain their flawless appearance for many years.
A variety of color solutions (milling, varnishing, aluminum overlays).
Allows you to make doors not only of traditional rectangular shape, but also of complex shaped designs: round, triangular, trapezoidal.
COLOUR OPTIONS
