REHAU Geneo Doors
Extra large elements.
More light, more freedom in architecture.
Extra high energy efficiency.
Unsurpassed thermal insulation and economy.
Various possibilities.
Maximum freedom in design, safety and maximum comfort.
Features of REHAU Geneo
- RAU-FIPRO profile core
Ensures excellent stability and torsional rigidity making it possible to build larger doors without steel reinforcement. - Six-chambered frame
Provides unmatched thermal insulation, surpassing the requirements of the U.S. Department of Energy R-5 Door program and making achievement of German Passivhaus standard possible. - Multiple locking points surrounding the sash
Provide extra security, tighter seal and greater comfort. - 53 mm glazing channel
Accommodates triple glazing, increasing both energy efficiency and acoustical properties.
Specifications of Geneo Doors
| Feature | Specification |
| Profile depth: | 86 mm |
| Number of chambers: | 6 chambers |
| Glass width: | up to 53 mm |
| Threshold height: | 20 mm |
| Seals: | RAU PREN / 3 seals |
| Thermal performance (Uf): | 0,86 W/m2K |
| Sound insulation: | 47 dB |
| Burglary prevention: | RC3 (RC2 without steel reinforcement) |
| Air permeability: | class 4 (EN 12207) |
| Moisture permeability: | max. class 9A (ENV 12208) |
Advantages of Doors
REINFORCED CORNERS
Strengthening the reinforcement in the leaf provides additional strength to the connecting seam, increasing the stability and rigidity.
HINGES
Overhead door hinges are made from high quality materials using self-lubricating bushings, eliminating the need for maintenance.
THRESHOLDS
Low height threshold made of oxidized aluminum in combination with a plastic insert. The thermal inserts minimizes the risk of condensation, mold or mildew.
TWO SEALING CIRCUITS
Double sealing in the threshold area ensures a high density of the door seal, protecting the room from drafts, dust and water.
MASSIVE REINFORCEMENT
Steel reinforcement along the entire perimeter provides excellent static properties, high rigidity and stability of the door structure.
Modern Style and Energy Efficiency
Offering a range of stylish options, our door systems are built to last and combine strong construction with a superior finish. Entrance doors offer you choice and versatility, whether you are looking for glass doors, uPVC panel doors or fixed doors, all of which can accommodate state-of-the-art high quality handles, hinges and locking mechanisms, making your REHAU door safe and secure.
Our modern door systems, available in both swing and open, are fully compatible with all REHAU door styles, providing a high quality, consistent finish throughout your home and, like all REHAU products, are available in a variety of finishes and colours. The color and glazing options you choose for the door will change the look of your home. The options are almost endless.

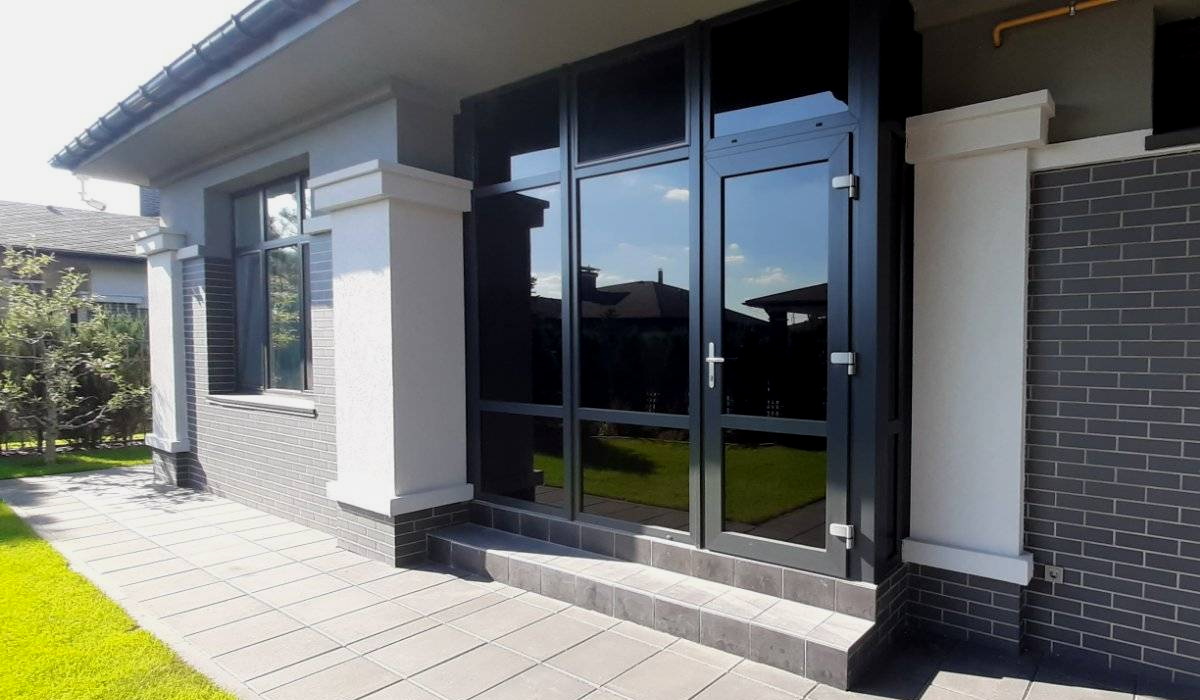

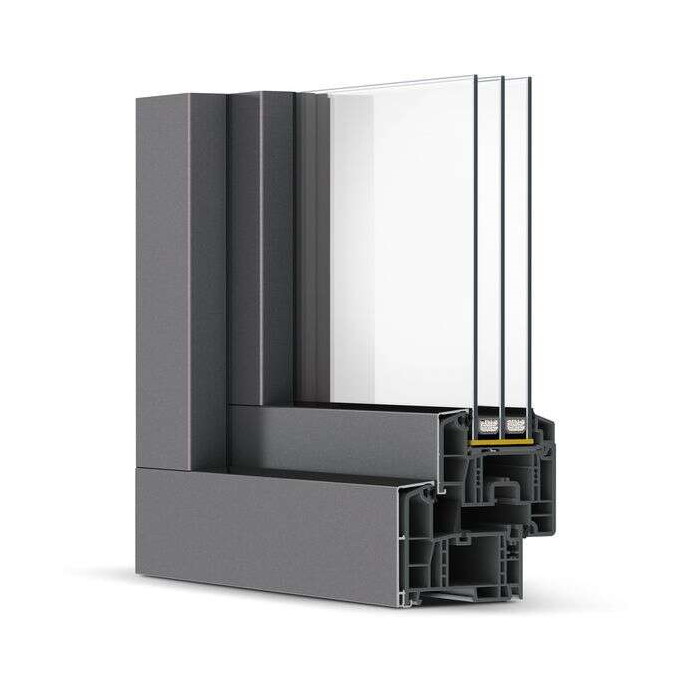

Geneo Kaleido Cover Doors
The surface of the overlays can be andoved or painted in any color from a palette of more than 170 shades according to RAL, DB or NCS, for which liquid or powder paint can be used. Aluminum trims are stable, durable and low maintenance, making them another great design and practical solution.
- This is a quick and effective way to decorate metal-plastic doors.
- The surface of the cover can be painted in any color according to the RAL table.
- You can make an imitation of different surfaces and textures: matte/glossy/rough finish/wood structure. These overlays will help you create the most daring design for your facade.
- The great advantage of aluminum overlays is that this system can be integrated with any metal-plastic and aluminum products and systems.
